Classroom Accessibility

Classroom Accessibility Standards (CAS): Implementation Guidance

This document serves as a supplemental guideline for the Classroom Accessibility Standards (CAS), and will further the rationale for many of the standards listed. The information presented will discuss the importance of each benchmark in the CAS standards.

Please note: This document, and the supporting CAS standards list, does not reflect all the 2010 ADA standards, but merely items pertaining specifically to general purpose classrooms. The 2010 ADA Standards for State and Local Government facilities (hereafter, “the 2010 ADA Standards”) provides the backbone for our accommodation requirements in State University of New York classrooms. Per the compliance information in the 2010 ADA Standards, should construction begin after March 15, 2012 (IE, new construction), the 2010 ADA standards should be followed. Buildings with no renovations post March 15, 2012 can follow the 1991 standards OR the 2010 standards; both of which make similar provisions.

For additional information, please review the following reference: 2010 ADA Standards for Accessible Design may be reviewed at this website. To add, a comprehensive comparison of the standards may be found at Comparison of the 2010 and 1991 ADA Standards for Accessible Design (PDF).

What are the main features of an accessible computer lab?

Designing a lab that is universally accessible begins with the physical environment of the facility. Considerations for making a computer lab facility more accessible include the following:

First Steps

To begin the process of making your computer lab accessible to everyone, take the following steps.

  1. Include students with disabilities in planning and evaluating lab products and services.
  2. Develop policies and procedures that ensure access to lab facilities, computers, and electronic resources for people with disabilities. Require that accessibility be considered in the procurement process.
  3. Ensure that the facility and services are wheelchair-accessible and publications can be reached from a seated position.
  4. In key lab documents, include a statement about your commitment to universal access and procedures for requesting disability-related accommodations.
  5. Make signs with high contrast and large print.
  6. Make key documents available in formats accessible to those who have low vision and those who are blind (e.g., large print, Braille, electronic).
  7. Although a lab cannot be expected to have specialized equipment for every type of disability on hand, staff should make equipment available that they anticipate will be most often used or that is available at relatively low cost. This might include:
    • an adjustable table for each type of workstation in your lab;
    • a wrist rest and forearm rest;
    • a trackball;
    • software to modify keyboard response such as sticky keys, repeat rate, and keystroke delay (that may be available in the operating system);
    • software to enlarge screen images (that may be available in the operating system), along with a large monitor;
    • large-print keytop labels; and
    • web resources that adhere to accessibility standards or guidelines adopted by the lab.
  8. Once a lab is established and serves a large number of users, consider adding:
    • text-to-speech software;
    • scanner and optical character recognition (OCR) software;
    • CCTV to enlarge printed documentation;
    • Braille translation software and printer;
    • word prediction software;
    • hearing protectors;
    • keyboard guards to assist those who have limited fine motor skills;
    • alternative keyboards, mini-keyboards, or extended keyboards for users with mobility impairments;
    • speech input software; and
    • one-handed keyboards or “keyboard layout” software.
  9. Develop a procedure to ensure quick responses to requests for assistive technology that you do not currently have available or for other disability-related accommodations.
  10. Train staff on available accessible products in the lab, on appropriate communication, and on procedures for addressing requests for accommodations. Include accessibility issues in all training offered in the lab.
  11. Include people with disabilities when addressing accessibility in periodic lab evaluations.

Computer Lab Accessibility Guidelines

The following are guidelines for equipment, software, signage, and other elements in computer labs on campus. Although these are guidelines, all equipment and other elements in the computer lab must comply with the Temple University policy on Accessible Information and Technology:

Any information and technology — including, but not limited to, computers and ancillary equipment, instructional materials, software, videos, multimedia, telecommunications, or web-based content or products — developed, procured, maintained, or used in carrying out university activities must be compliant with Sections 504 and 508 of the Rehabilitation Act of 1973, as amended, the Americans with Disabilities Act of 1990, as amended, and other related local, state, and federal laws, as well as other related university policies.

Timeline

It was required that the items needing remediation be corrected before the start of the Fall 2015 semester.

Signs and Documentation

Signs should be printed with the following attributes:

If accessibility symbols are used, they should be the international accessibility symbols.

Signs with tactile characters (Braille) should be positioned so that the baseline of the lowest character is 48” above the floor and the baseline of the top character is a maximum of 60” from the floor. Visual characters must be at least 40 inches from the floor.

Documentation should be available in both print and braille, and should be positioned no more than 48” above the floor.

An alternative to putting braille on signs around the lab is to have an HTML or Word document available in the 'Accessibility Tools' folder labeled 'policies and guidelines.' Electronic copies of the documentation are an acceptable alternative to braille documents.

Counters

Counters should be considered service counters such as where a student would sign in/out equipment, log books, Pay to Print swipe to release PC station, etc. Surfaces where they perform the majority of their work, such as desks and tables, would be considered a work surface and are discussed in subsequent sections.

Counters should have at least one section that’s at an acceptable height for patrons in wheelchairs or scooters, at most 36” from the floor, and at least 36” wide (30" wide if approached from the front; otherwise should be adjacent to a walking surface that is at least 30” by 48”). If writing is required (for example: sign in/out log), then the height should be between 28” and 34” from the floor.

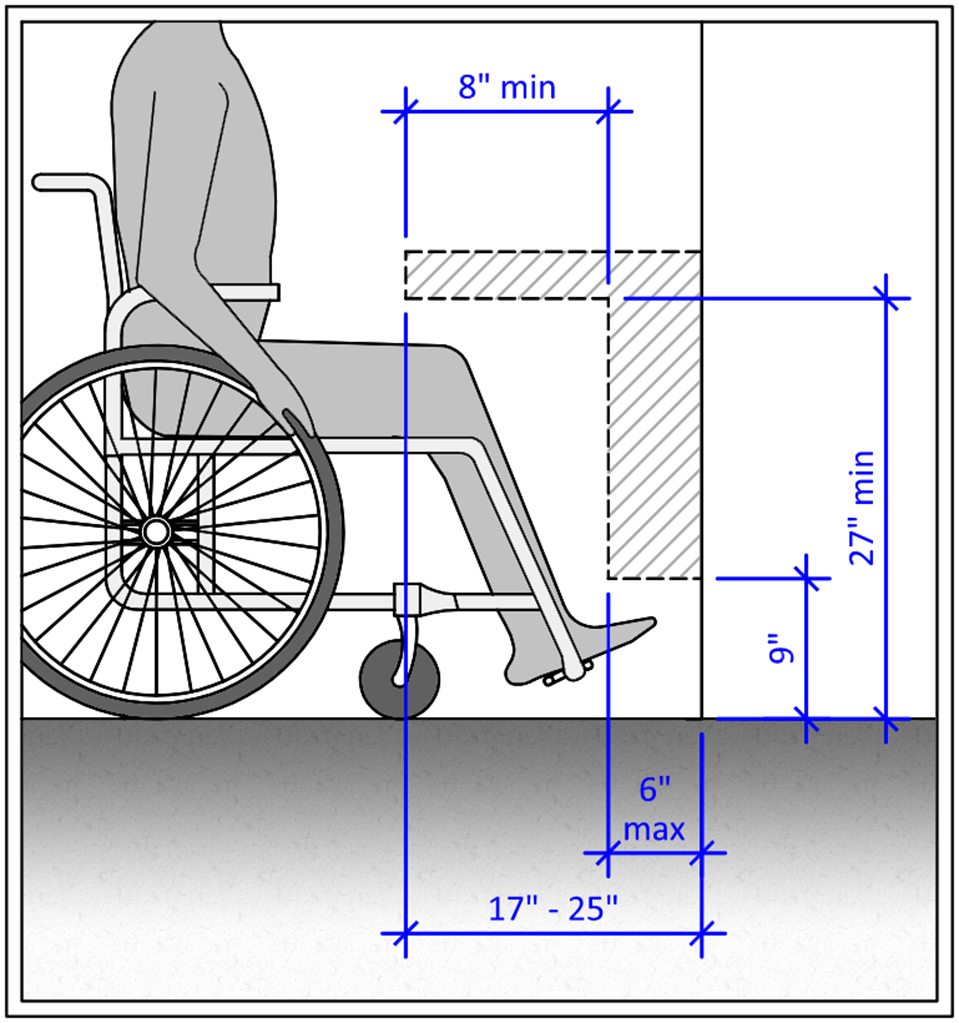

Figure One
Figure 1– Toe and knee clearance for front approach counters (click to enlarge)

Forward approach counters must have knee and toe space under the counter (at least 30” wide, and extending 17” under the counter with a height of 27” above the floor, which a toe clearance of 6” beyond the knee clearance at a height of 9” above the floor).

Pay to Print

At least one Pay to Print (aka UniPrint) station for each format of printer (i.e. standard desktop printer vs. plotter) should be located so they are wheelchair accessible (see counter requirements).

The Pay to Print station should be a PC based station that has the NVDA screen reader installed, and it should have the option to adjust the contrast.

Access to output trays/bins for printers managed by an accessible Pay to Print station is between 15” and 48” from the floor (between 24” and 40” preferred) and 20" to 25" from the center of where the person’s lap is expected to be.

Workstations and Other Equipment

Minimum Number of Hardware Accessible Workstations

It may not be feasible for a department to deploy accessible hardware on every computer in every lab. However, there are minimum numbers of accessible stations that need to be in each lab.

For each type of computer (i.e. PC, Mac, CAD Station, Scanning Station, and Breakout room) in the lab, the number of accessible stations of that type should adhere to the following chart:

Number of unique type STATIONS Minimum number of required accessible workstations
1 to 25 1
26 to 50 2
51 to 150 4
151 to 300 5
301 to 500 6
501 to 5000 6, plus 1 for each 150, or fraction thereof, between 501 through 5000

Ideally the accessible stations will be spread throughout the room, rather than grouped together, unless the computers of that type are typically grouped together. The workstations with assistive technology should be designated with the international handicapped symbol.

Minimum Standards for Accessible Workstations

There are four elements to consider with the physical dimensions of the work surface:

Figure Two
Figure 2 - work surface requirements (click to enlarge)

Clear aisle width between the work surface and a barrier should be at least 48”, with 60” recommended. A minimum of 60" is required for turning. Clear path to the workstation is at least 36" wide (the path can narrow to 32" at a point).

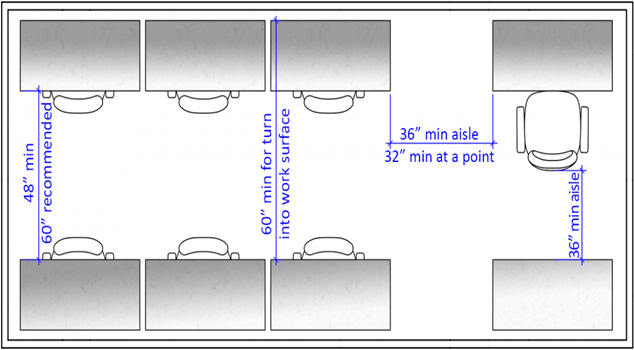

Figure Three
Figure 3 - Aisle space for work surfaces (click to enlarge)

Preferred Configuration

Height adjustable work surface with the following attributes:

Accessible Hardware Configuration

Software

The following software is required for the accessible workstations:

Adapted Software for Accessible PC Workstations

Adapted Software for Accessible Macintosh Workstations

Accessibility Tools Folder

On every accessible workstation, there must be a readily available folder, or shortcut to the folder, called "Accessibility Tools" with the designated accessibility icon.

Personnel

The new consultant training process should include training on how to use the accessible hardware and software, and on serving customers with disabilities.

Legal & Statutory References

The relevant sections of Section 508 of the Rehabilitation Act of 1973 may include: subpart B 1194.26 for workstations and subpart B 1194.25 for Pay to Print stations. Relevant sections of the 2010 ADA Standards for Accessible Design may include: 304, 305, 306, 308, 309, 703, 802, 902, and 904.
